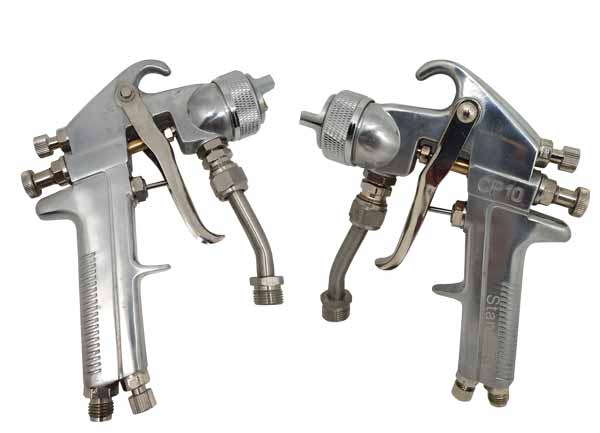

STG 10

- The STG 10 standard-size manual spray gun sets industry standards for high-production performance
- The STG 10 manual spray gun also offers the comfortable fit and feel operators prefer. An economical option for waterborne and solvent-based material applications, the STG 10 air spray gun delivers the quality results you need for tough applications.
- Technical Parameters :

• Body: Drop Forged Aluminum
• Gun Category: Conventional & HVLP
• Weight: 590 gr
• Nozzle Size 0.5,1.0,1.4,1.6,1.8,2.2,2.8 mm
• Air Inlet: 100 psi (7 bar) max, 1/4" NPS (M)
• Fluid Inlet: 150 psi (10 bar) max, 3/8" NPS (M)
• Fluid Passages: 304 grade stainless steel
• Pattern Wide: about 40 cm
• Feed Type: Pressure feed

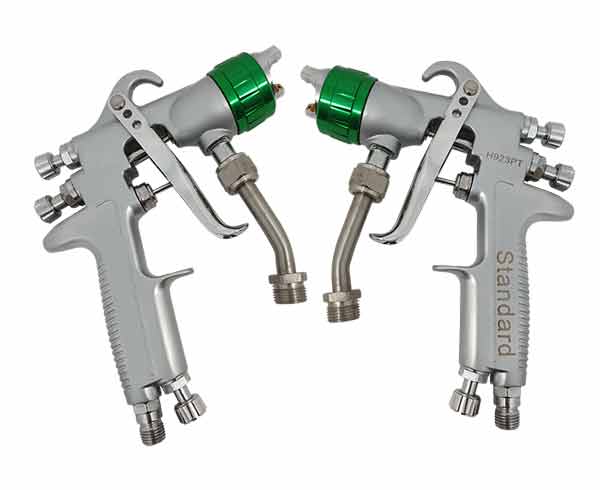

STG 923

- Highest profitability - HVLP technology ensures transfer efficiencies considerably above 65 % required by VOC legislation. As a result, this pressure-fed high-performance gun not only helps protect the environment, but also saves lots of expensive paint (approx. 30 % compared to a conventional high-pressure gun).
- Finest atomization and a top-class finish are ensured by the high air volume. The slight additional cost for compressed air (compared to a conventional high-pressure gun) are considerably exceeded by material savings. Even with the latest generation of High Solid materials, excellent atomization quality is achieved.
- Air circulation principle provides an especially homogeneous and soft fan.
- The large fan and high material flow rates ensure swift work.
- 100 % hand checked nozzle sets ensure the constantly high quality - for complete guns as well as spare nozzle sets.
- The durable air caps are made of brass (not of aluminum), therefore ensuring a long life time - a factor particularly important for industrial use.
- Nozzle sets ranging from 0.8 to 2.0 mean a wide field of application.
- The gun can be adapted without greater effort to existing work stations.
- Excellent handling - the short gun body, extremely low weight and the optimum balance ensure the gun "fits like a glove".
- Suitable for water-borne materials - paint needle and nozzle are made of stainless steel, and the nickel-plated gun body has been refined with a special coating.
- Self-adjusting air and material packings with long life considerably reduce servicing efforts.
- The carefully polished nickel-plated gun surface and the Quick-Change System reduce cleaning efforts as well.
- Naturally, the gun is equipped with a material flow control, a round / flat spray control and an air micrometer.
- Please also see our complete line of material feed systems, such as paint pressure tanks, diaphragm and piston pumps.
- Technical Parameters:

• Body: Drop Forged Aluminum
• Gun Category: HVLP
• Weight: 610 gr
• Nozzle Size : 0.5,1.0,1.4,1.6,1.8 mm
• Air Inlet: 50 psi (3.5 bar) max, 1/4" NPS (M)
• Fluid Inlet: 100 psi (7 bar) max, 3/8" NPS (M)
• Fluid Passages: 304 grade stainless steel
• Pattern Wide: about 35 cm
• Maximum operating temperature: 50℃
• Air consumption: 5-9 cfm
• Feed Type: Pressure feed

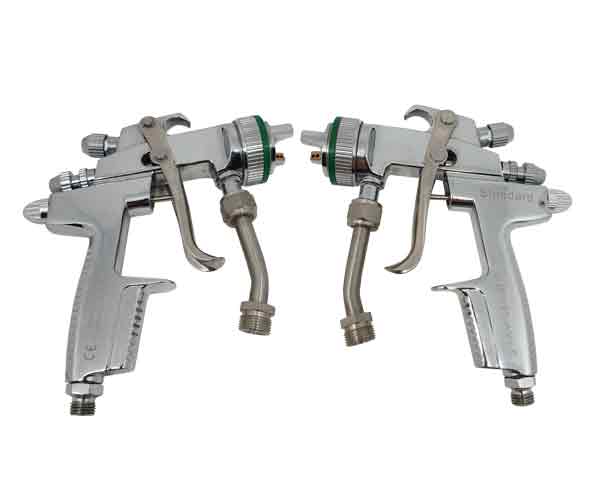

STG 3000

- Environmentally friendly paint-saving top coating spray gun
- Pressure fed high performance gun
- Perfect for applying large quantities of paint for any job requiring the best finishes like car refinishing or airplane construction
Highest profitability – STG 3000 HVLP technology ensures transfer efficiencies considerably above 65 % required by VOC legislation. As a result, this pressure-fed high-performance gun not only helps protect the environment, but also saves lots of expensive paint (approx. 30 % compared to a conventional high-pressure gun).
- Finest atomization and a top-class finish are ensured by the high air volume. The slight additional cost for compressed air (compared to a conventional high-pressure gun) are considerably exceeded by material savings. Even with the latest generation of High Solid materials, excellent atomization quality is achieved.
- The patented air circulation principle provides an especially homogeneous and soft fan.
The large fan and high material flow rates ensure swift work.
The durable air caps are made of brass (not of aluminum), therefore ensuring a long life time - a factor particularly important for industrial use.
- Nozzle sets ranging from 0.8 to 2.0 mean a wide field of application.
- The gun can be adapted without greater effort to existing work stations.
- Excellent handling - the short gun body, extremely low weight and the optimum balance ensures the gun "fits like a glove".
- Suitable for water-borne materials - paint needle and nozzle are made of stainless steel, and the nickel-plated gun body has been refined with a special coating.
- Self-adjusting air and material packings with long life considerably reduce servicing efforts.
- The carefully polished chrome-plated gun surface and the Quick-Change System reduce cleaning efforts as well.
- Technical Parameters:

• Body: Drop Forged Aluminum
• Gun Category: HVLP
• Weight: 640 gr
• Nozzle Size : 0.8,1.0,1.4,1.6,1.8,2.0 mm
• Air Inlet: 50 psi (3.5 bar) max, 1/4" NPS (M)
• Fluid Inlet: 60 psi (4.1 bar) max, 3/8" NPS (M)
• Fluid Passages: 304 grade stainless steel
• Pattern Wide: about 30 cm
• Maximum operating temperature: 50℃
• Air consumption: 18 cfm
• Feed Type: Pressure feed
